NSX Silver Completes Phase II Drilling at Dios Padre with Solid Results

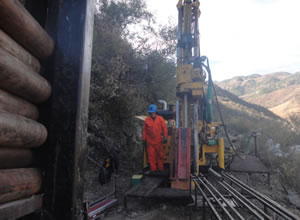

Drilling activities at Dios Padre

NSX Silver successfully completed its Phase II drilling at its Dios Padre Silver project in Sonora State, Mexico

NSX Silver (NSY – $0.06) again announced solid drill results from its Dios Padre silver project in east central Sonora State, Mexico. Seventeen drill holes, totaling 3,220 metres, were completed in and around the area of historic mining (also see table below).

Zones ranging up to 41 meters in thickness of silver mineralization, along with the occurrence of low grade gold mineralization, were encountered. Hole DP-21A-2013 intersected 18.9 metres of 234 grams per tonne silver and 0.179 grams gold per tonne. Drill hole DP-26-2013 returned 41 metres grading 288.2 grams per tonne silver and 0.164 grams gold per tonne. Moreover, drill hole DP-29-2013 assayed 207.69 grams per tonne silver and 0.184 grams gold per tonne over a 20.9 metres intercept.

33 Holes Completed

During the first half of 2012 NSX Silver completed a 16-hole drill program, totaling 3,530 meters, as a first step towards establishing a comprehensive geological model for Dios Padre. Ten of the holes targeted the area in and beneath the historically mined Santa Gertrudis open pit.

The Dios Padre property has a long and vivid history as a high grade producing open pit mine. Sixteen million ounces of silver is reported to have been mined between the early 17th century, which were operations directed by Jesuits, and more organized mining efforts under L.V. Limited between 1860 and 1910.

These ten holes encountered mineralized zones that contained silver mineralization intermixed with a variety of sulfide minerals. Of these, three holes were drilled into the old mine workings, and seven holes were focused on new prospective targets below the historic workings. Assay results from these deeper holes reported anomalous silver and gold values throughout much of their length as well as thicker zones of higher grade material.

Of significance is the fact that silver mineralization occurs in both the rock matrix and within vugs (cavities) and fractures in rhyolite and rhyolite breccia host rock rather than in discrete veins. This reinforces expectations of the potential for additional higher grade mineralized zones below the known historic mine workings and within the feeder stock that appears to trend to the north-northeast of the Dios Padre Breccia zone.

Remember that the Santa Gertrudis silver deposit is hosted inside a breccia pipe, which is a volcanic structure that intrudes into surrounding rock. Meaning that the structure extends deeper where there’s potential to find more valuable metals.

Also of importance was the fact that several holes encountered significant zones of mineralization at or near surface. This could lead to a large lower grade resource near surface, which could potentially support a low cost open pit or bulk mining operation.

After analyzing all the 2012 results, along with drill results from previous owners, the Company initiated the Phase II drilling program at Dios Padre with the objective to

  • Expand the mineralized zone at depth following the plunge of the mineralized breccia intrusive body; and
  • Support a NI 43-101 compliant resource estimation for Dios Padre.

Upcoming Milestones

NSX Silver’s geologists are currently reviewing and analyzing all data generated from this program together with data collected from the Phase I program and from the historic exploration programs. Based on all that information, the geological model of the property will be updated and a new resource estimate will be prepared.

Furthermore, a Phase III drill program will be discussed and planned, in which the Huerigo and other anomalous zones on the Dios Padre property will also be evaluated for potential drilling.

Conclusion

NSX Silver showed some good drill results from Dios Padre. Unfortunately the market seems indifferent these days to whatever news a resource company announces. One thing’s for sure though, the market moves in cycles and will rebound all over again. It’s always been, and will remain, that way.

So make sure to position yourself in a few juniors which continue to develop their properties even in a downturn and which are run by managements that have gone through these cycles before and know how to respond to them. NSX fits that description.

Hole
Number
From
(meters)
To
(meters)
Interval
(meters)
Silver Grade
(g/t)
Gold Grade
(g/t)
DP-18-2013 193.70 201.70 8.00 71.63
DP-19-2013 149.25 151.50 2.25 148.91 0.358
DP-20-2013 125.70 131.70 6.00 90.15 0.217
DP-21-2013 0.00 26.60 26.60 107.36
DP-21A-2013 27.20 46.10 18.90 234.57 0.179
DP-22-2013 126.45 139.10 12.65 250.42
DP-23-2013 28.40 32.40 4.00 49.25
DP-26-2013 91.30 132.30 41.00 288.19 0.164
including
100.30 104.30 4.00 1,165.81 0.395
including
101.80 104.30 2.50 1,489.90 0.351
DP-29-2013 0.00 20.90 20.90 207.69 0.184
including
10.30 18.90 8.60 443.00 0.175
DP-30-2013 203.60 215.60 12.00 208.21
DP-32-2013 87.70 91.70 4.00 229.90 0.104
Drill intercepts from holes DP-17-2012 through DP-32-2012 from the Dios Padres silver property in Mexico. Note, holes not mentioned in the table had no significant mineralization. Source: Company press release.

Note that there’s a hole DP-21-2013 and DP-21A-2013, because hole DP-21-2013 intersected old workings and was therefore terminated after 26.6 metres.
